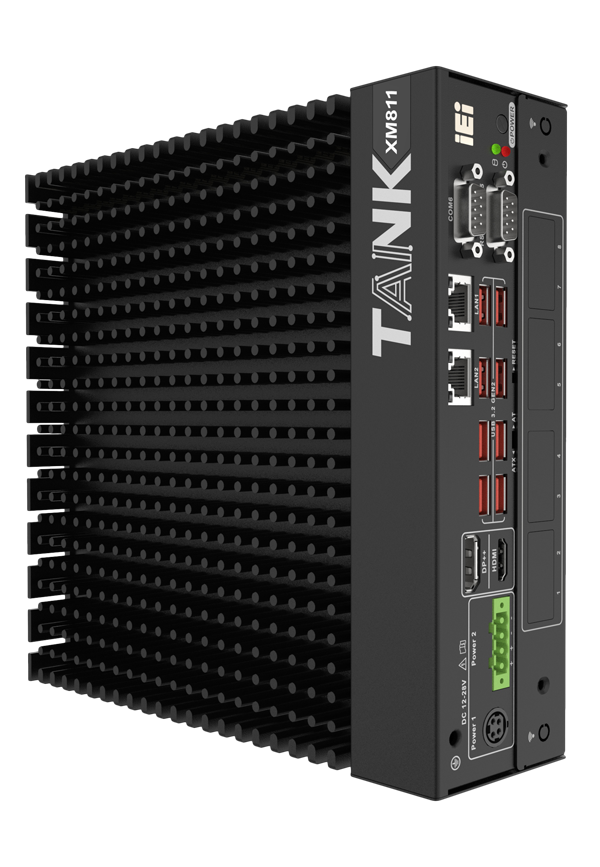

> 產品 > TANK系列強固型系統 > TANK-XM811
| » 支持的CPU: |
|
Intel® Core™
i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP)
|
|
Intel® Core™
i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP)
|
|
Intel® Core™
i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP)
|
|
» 2 x 2.5GbE
ports
|
|
» 多個USB和串行接口
|
|
» 多種內部擴展板，靈活選擇
|
|
» 多種可選背板和機箱
|
|
» 符合 CE/FCC 標準
|
| SBC Form Factor | ● CPU: 12th/13th/14th Gen Intel® Core™ CPU 35/65W Intel® Core™ i5-12500TE 1.9GHz (up to 4.3GHz, 6-core, 35W TDP) Intel® Core™ i7-12700TE 1.4GHz (up to 4.6GHz, 12-core, 35W TDP) Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, 35W TDP) ● 芯片組: R680E ● 系統內存: 2 x SO-DIMM DDR4 3200 (預裝8GB) (支持多達64GB) ● 電源: 直流插孔: 12 V~28 V直流 接線端子k: 12 V~28 V直流 功耗: 12V @ 8.8A (Intel® Core™ i9-12900TE帶16GB 內存) |
| I/O Ports | ●
USB: 8 x USB 3.2 Gen 2 ● 網絡: 2 x RJ-45: 2 x 2.5 GbE by Intel ® I226V (colay I226LM) ● 串口: 2 x RS-232/422/485 4 x RS-232 ● 數字l I/O: 12-bit Digital I/O (6-in/ 6-out) ● 顯示: 1 x HDMI™ 1 x DP++ ● TPM: 支持 Intel PTT ● 看門狗定時器： 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | ●
M.2: 1 x 2280 M-key (PCle x4) 1 x 2230 A-key (USB+PCIe x1, supports vPRO) ● 背板: 選配 |
| Cooling method / System Fan | 無風扇 4 針外部系統風扇連接器 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Buttons | 1
x 電源開關 1 x 復位開關 1 x AT/ATX開關 |
| Indicators | 1
x 電源燈 (綠色) 1 x 硬盤燈 (黃色) |
| Construction | 鋁合金 |
| Color | 黑色 |
| Dimensions | 230.6 x 256.04 x 76.2 |
| Weight | 3.33/3.7 kg |
| 工作溫度 | -20°C
~ 60°C 有氣流 (CPU TDP35W & SSD) -20°C ~ 50°C 有氣流 (CPU TDP65W & SSD) |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| 安規&電磁 | 符合CE/FCC認證 |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| TANK-XM811-i9AD-R11 | Ruggedized Fanless Embedded System With Intel® 12th i9 CPU, 16GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
| TANK-XM811-i7AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i7 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
| TANK-XM811-i5AC-R11 | Ruggedized Fanless Embedded System With Intel® 12th i5 CPU, 8GB RAM, 1xHDMI, 1xDP++, 2x2.5GbE Lan, 2xRS232/422/485, 4xRS232, 8xUSB3.2, 12xGPIO, 12~28V DC and RoHS |
