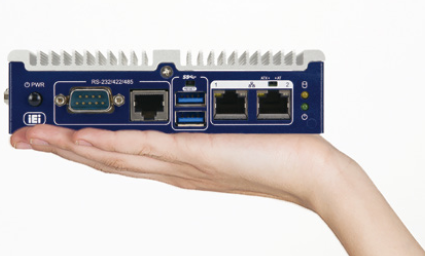

> 產品 > 微小型系統 > ITG-100-AL| ● Intel®Atom™ x5-E3930 1.3GHz (最高 1.8 GHz) |
|
● 兩個 GbE LAN 端口
|
|
● 兩個 RS-232/422/485
|
|
● 全尺寸 PCIe 迷你插槽和 M.2 A-key 插槽，用于擴展
|
產品規格
|
SBC Form Factor
|
●CPU: |
| Intel® Atom™ x5-E3930 1.3GHz (最高 1.8 GHz, 雙核, TDP=6.5W) | |
| ●芯片組: | |
| SoC | |
| ●系統內存: | |
| 1x 204-pin DDR3L SO-DIMM 插槽 (系統**** 8 GB) | |
| ●電源: | |
| 輸入 : 2-pin 接線端子: 12 V DC | |
| 功耗: 12V @ 1A (Intel® Atom™ x5-E3930 CPU with 2GB 1600 MHz DDR3L 內存) | |
| ●可靠性: | |
| 操作沖擊: 半正弦波沖擊 5G, 11ms,每軸 100 次沖擊, IEC68-2-27 | |
| 工作振動: MIL-STD-810G 514.6C-1 (SSD) | |
| Safety/EMC: CE/FCC | |
|
Cooling method / System Fan
|
無風扇 |
|
Drive Bays
|
1 x 2.5＂ SATA 6Gb/s HDD/SSD 托架 |
| (支持 ITG-100-AL-E1 和 ITG-100-AL-E1/2GB) | |
|
Buttons
|
1 x 電源按鈕 |
| 1 x 重置按鈕 | |
| 1 x AT/ATX 開關 | |
|
Indicators
|
1 x LED 用于 HDD (黃色) |
| 1 x LED 用于電源 (綠色) | |
|
I/O Ports
|
●USB: 2 x USB 3.0 |
| ●以太網:2 x RJ-45 | |
| PCIe GbE by Intel® I211 控制器 | |
| ●COM 端口:2 x RS-232/422/485 | |
| ●顯示:1 x VGA | |
|
Operating Temperature
|
-20°C ~ 60°C 含氣流 (SSD) |
|
Humidity
|
10% ~ 95%, 無冷凝 |
|
Construction
|
擠壓鋁合金 |
|
Dimensions
|
ITG-100-AL-E1/S: 137 x 102.8 x 36.2 (WxDxH) (mm) |
| ITG-100-AL-E1: 137 x 102.8 x 56.2 (WxDxH) (mm) | |
|
Weight
|
ITG-100-AL-E1/S: 0.67 kg/1.03 kg |
| ITG-100-AL-E1: 0.86 kg/1.22 kg | |
|
Color
|
藍色 和 銀色 |
|
Expansion Slots
|
M.2: |
| 1 x M.2 2230 (A key, PCIe by 1, USB2.0) | |
| PCIe Mini: | |
| 1 x 全尺寸 PCIe Mini 插槽 (支持 mSATA, colay with SATA) |
| ITG-100-AL-E1/2GB/S-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC and RoHS |
| ITG-100-AL-E1/2GB-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), 2GB DDR3L pre-installed memory, VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS |
| ITG-100-AL-E1/S-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), VGA, M.2, COM, 12V DC and RoHS |
| ITG-100-AL-E1-R10 | Fanless embedded system, Intel®Apollo Lake x5-E3930 1.3GHz (up to 1.8GHz, dual core), VGA, M.2, COM, 12V DC, Flexible I/O Expansion and RoHS |
