威強推出 WAFER-ULT-i1 嵌入式主板
[ Date: 2014/10/29 15:09:37]
 特征 | | |
|
|
| |
 | 尺寸 3.5” , Intel® 第四代 ULT SoC, 支持雙通道 DDR3L DIMM | | 12V 單電壓設計,支持 AT/ATX 模式 | | 支持 18/24-bit 雙通道 LVDS | | 通過 LVDS, VGA 和 iDP 支持獨立三顯 | | 支持 PCIe Mini 卡槽,可用于 mSATA, 3G 卡, 無線卡和 DOM |
|
|
| iRIS-1010 主要功能 | | |
|
 | | 基于 IPMI 2.0 管理 | | 支持跨操作系統平臺 | | 硬件健康監測 | | 事件日志 | | 通知 | | 支持 Virture 媒體 | | 遠程控制電源 | | 用戶管理 | | 局域網上串行 |
|
|
| |
|
| 規格 | | |
|
| 型號 | WAFER-ULT-i1 | | CPU | Intel® 第四代移動 ULT 板載 SoC
Intel® Core™ i7-4650U (1.7GHz, 雙核, 4MB 緩存, TDP=15W)
Intel® Core™ i5-4300U (1.9GHz, 雙核, 3MB 緩存, TDP=15W)
Intel® Core™ i3-4010U (1.7GHz, 雙核, 3MB 緩存, TDP=15W)
Intel® Celeron® 處理器 2980U (1.6GHz, 雙核, 2MB 緩存, TDP=15W) | | BIOS | UEFI BIOS | | 內存 | 兩個 204-pin 1600/1333MHz 雙通道 DDR3L SDRAM 無緩存 DIMMs 支持最高達 16GB | | 圖形引擎 | Intel® HD 顯卡 Gen 7.5 支持 DX11.1, OpenGL 4.2 和 OpenCL1.2
Full MPEG2, VC1, AVC decode | | 顯卡輸出 | VGA (高達 1920x1200@60Hz)
18/24-bit 雙通道 LVDS by CH7511B DP to LVDS converter (高達 1920x1200@60Hz)

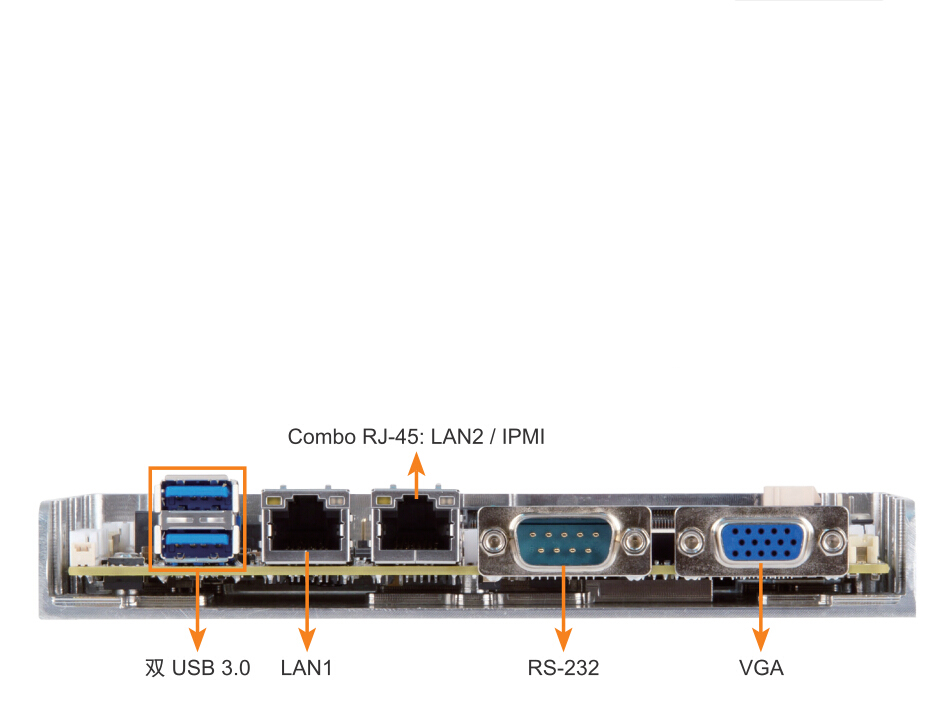

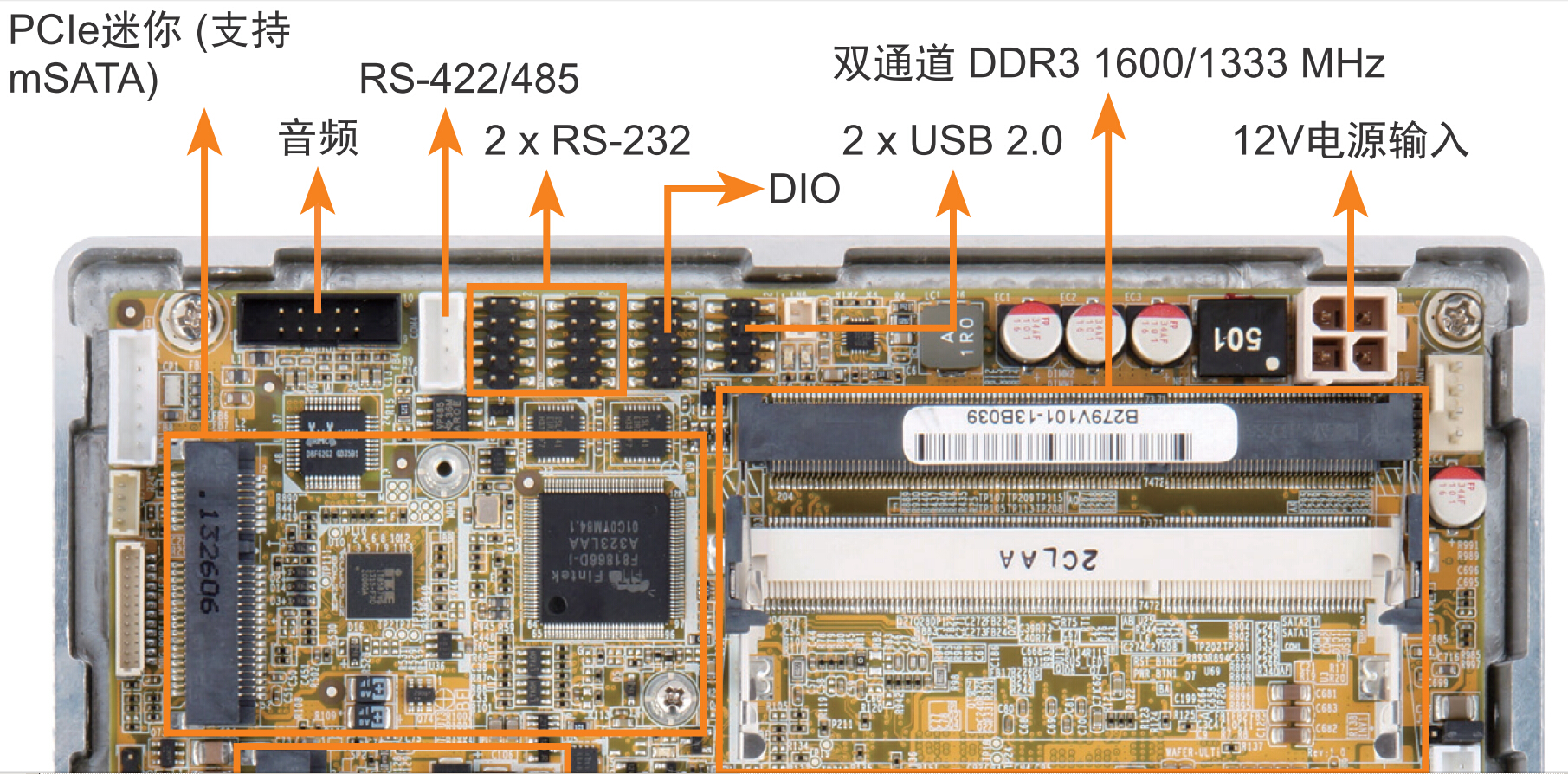

iDP 接口 for HDMI, LVDS, VGA, DVI, DP (高達 3840x2160 @60 Hz) | | 以太網 | LAN1: Intel® I218LM PHY 支持 Intel® AMT 9.0
LAN2: Intel® I210-AT PCIe 控制器支持 NCSI | | Super IO | Fintek F81866 | | I/O 接口 | | 3 x RS-232 | 1 x RS-422/485 | | 1 x 6-pin wafer for PS/2 KB/MS | 2 x SATA 6Gb/s 帶 5V 電源接口 | | 2 x USB 3.0 (后端 I/O) | 2 x USB 2.0 (by pin header) |
| | iRIS 遠程管理模塊 | 1 x iRIS-1010 插槽 | 擴展槽 | 1 x 全長 PCIe Mini 卡槽 (支持 mSATA ) | | 音頻 | Realtek ALC662 HD 音頻解碼器 | | 前面板 | 1 x 6-pin (1x6) 晶片用于電源 LED & HDD LED
1 x 2-pin (1x2) 晶片用于電源按鈕
1 x 2-pin (1x2) 晶片用于電源復位按鈕 | | LAN LED | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED | | 數字 I/O | 8-bit 數字 I/O (4-bit 輸入 / 4-bit 輸出) | | 風扇接口 | 1 x 4-pin 系統風扇接口 | | 看門狗定時器 | 軟件可編程, 支持 1~255 秒系統復位 | | 電源 | 僅限 12V DC 輸入
1 x 內置 4-pin (2x2) 電源接口
支持 AT/ATX 模式 | | 功耗 | +12V@2.72A (Intel® Core™ i5-4300U CPU, 2 x 8GB 1600 MHz DDR3 內存) | | 工作溫度 | -10°C ~ 60°C | | 存儲溫度 | -20°C ~ 70°C | | 工作濕度 | 5%~95%, 無冷凝 | | 尺寸 | 146mm x 102mm | | 重量 | GW:600g/ NW:250g |
|
|

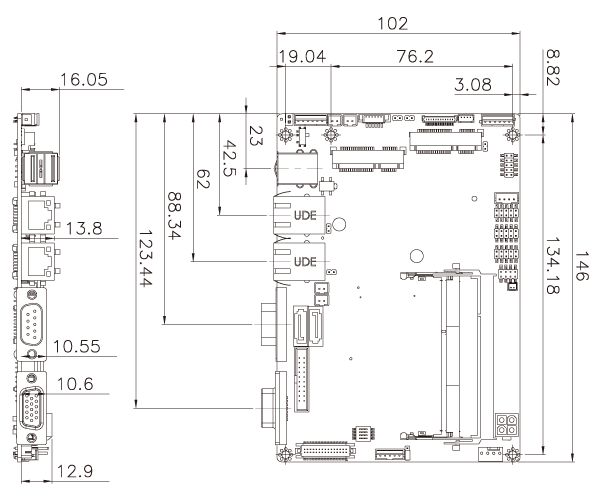

| 尺寸 | | |
|
 |
|
|
| 訂購信息 | | |
|
| 料號 | 描述 | | WAFER-ULT-i1-i7-R10** | 3.5" SBC supports Intel® 22nm 4th Generation Mobile Core™ i7-4650U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS | | WAFER-ULT-i1-i5-R10 | 3.5" SBC supports Intel® 22nm 4th Generation Mobile Core™ i5-4300U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS | | WAFER-ULT-i1-i3-R10** | 3.5” SBC supports Intel® 22nm 4th Generation Mobile Core™ i3-4010U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS | | WAFER-ULT-i1-C-R10 | 3.5” SBC supports Intel® 22nm 4th Generation Mobile Celeron™ 2980U processor (ULT), VGA/LVDS/iDP, Dual GbE, USB 3.0, PCIe Mini, SATA 6Gb/s Audio, iRIS-1010 and RoHS | | iRIS-1010-R10 | IPMI 2.0 adapter card with AST1010 BMC chip (W/O KVM over IP function) for PCIe Mini socket interface | | 32000-023800-RS | PS/2 KB/MS cable | | 19800-000300-200-RS | RS-232 cable | | 32205-003800-300-RS | RS-422/485 cable, 200mm | | DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) | | DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) | | DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) | | DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) | | DP-DP-R10 | DisplayPort converter board (for IEI iDP connector) | | **: 這些項目都是通過訂單生產,起訂量: 100 |
|
|
| 包裝清單 | | |
|
| 1 x WAFER-ULT single board computer with enclosure heatsink | | 2 x SATA with 5V output cable kit (P/N:32801-000201-300-RS) | | 1 x Audio cable (P/N: 32000-072100-RS) | 1 x One Key Recovery CD | | 1 x Dual-port USB 2.0 cable (P/N: 32000-070301-RS) | 1 x QIG | | 1 x Power cable (P/N: 32100-087100-RS) | 1 x Utility CD |
|
