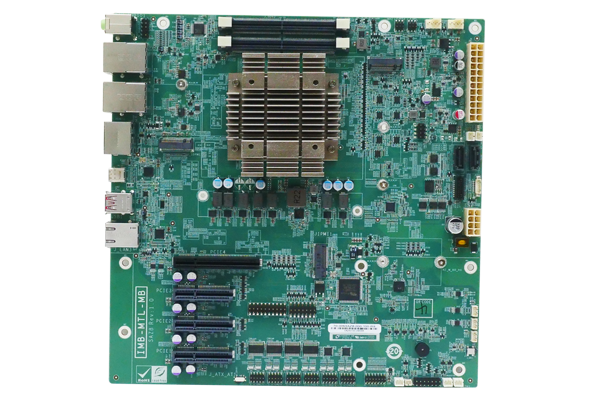

> 產品 > ATX工業主板 > IMB-MTL
| » 14th Gen. Intel® mobile Meteor Lake-H on-board 處理器 |
|
» 支持兩個 262-pin
5600 MHz DDR5 SO-DIMM, 高達 96GB
|
|
» 支持 dual
Intel® 2.5GbE 控制器
|
|
» Support PCIe
Gen5 x8, PCIe Gen4 x4, M.2 M key 和 M.2 B key 擴展
|
產品規格
| CPU | 14th Gen.Intel@ mobile Meteor Lake-H on-board processor |
| BIOS | AMI UEFI BIOS |
| Memory | 2 x 262-pin 5600 MHz DDR5 SO-DIMM, system up to96G |
| Graphics Engine | Intel@ New Xe LPG Graphics |
| Display Output | Quad independent display |
| 1 xHDMI 1.4 (up to 4K @30Hz) | |
| 1 x DP1.4 (up to 4K @60Hz) | |
| 1 xUSB4 (up to 4096 x2160 @60Hz) | |
| 1 x IEI iDPM 3040 slot | |
| Ethernet | LAN1:Intel® 1226LM 2.5GbE controller |
| LAN2: Intel@ 1226V 2.5GbE controller | |
| LAN3: FOr IPMI | |
| External l/O Interface | 2x USB 3.2 Gen 2 (10Gb/s) |
| 4xUSB 2.0 | |
| Intemal lO Interface | 2 x SATA 6Gb/s |
| 2 x USB 2.0 (2x4 pin, P=2.54) | |
| 4 xRS-232 (2x5 pin, P=2.0) | |
| 2xRS-23214221485 (2x5 pin, P=2.0) | |
| SMBuS | 1 x SMBus (1x4 pin) |
| 12C | 1 x FC (1x4 pin) |
| Audio | Realtek ALC888S HD Audio codec |
| 1 xAudio Jack (Line-out, Mic-in) | |
| 1 x Analog audio (2x5 pin) | |
| Front Panel | 1 x Front Panel |
| (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button | |
| Expansion | 1 x PCle Gen5 x8 Slot |
| 3 x PCle Gen4 x4 | |
| 1 x M.2 B key 3080 (for IRIS2-2600) | |
| 1 x M 2 M key 2280 (PCle Gen4 x2) | |
| Digital l/o | 1 x 12-bit digital l/0 (2x7 pin) |
| Chassis Open | 1 x Chassis intrusion (1x2 pin) |
| TPM | 1 xTPM2.0 (2 x 10pin) |
| Fan connector | 1
x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Power supply | ATX |
| Watchdog Timer | Software Programmable support 1~255 sec.System reset |
| Power Consumption | TBD |
| Operating Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Operating Humidity | 5%~95%,non-condensing |
| Dimension | 244mm x 244mm |
| Weight | GW:1200g/NW:700g |
| Certification | CE/FCC Compliant |
| IMB-MTL-U7E-R10 | Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 155H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-MTL-U7A-R10 | micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-MTL-U5E-R10 | Micro-ATX motherboard supports 14th Gen. Intel® Meteor Lake-H 125H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-MTL-U5A-R10 | micro-ATX motherboard supports 14th Gen. Intel® mobile Meteor Lake-H on-board processor, DDR5, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
