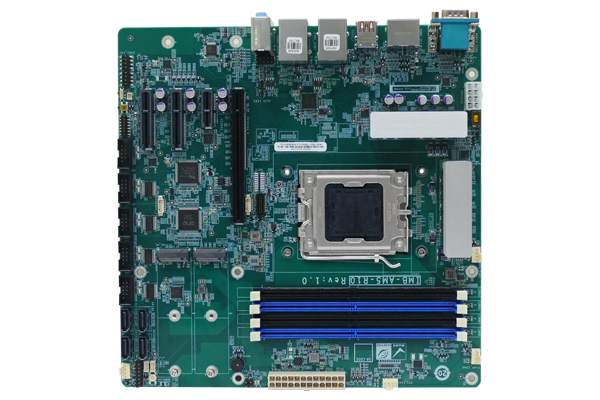

> 產品 > ATX工業主板 > IMB-AM5
| » micro-ATX 主板支持 AM5 for AMD Ryzen™ 7000 & 8000G & 9000 PHX1 系列處理器 |
|
» 支持四個 288-pin
5200 MHz 雙通道 DDR5 SDRAM 無緩沖 DIMM，最高支持192GB
|
|
» 通過 HDMI™、DP
三重獨立顯示
|
|
» 支持雙 Intel®
I226V 2.5GbE 控制器
|
|
» 支持 PCIe Gen4
x1、PCIe Gen4 x4、PCIe Gen4 x16、M.2 M key 擴展
|
產品規格
| CPU | AMD EPYC™ SP6 Siena 8-64 cores |
| 內存 | 6 x 96GB 288-pin 4800MHz DDR5 RDIMM with ECC |
| 內存上限 | up to 576GB |
| 網絡 | LAN - 4 x 2.5GbE (I225-LM / I226-LM) Base-T LAN Ports 1 x GbE RJ45 IPMI management port 1 x RJ45 (RS-232 LAN Console port) |
| 顯示輸出 | 1 x Display Port: DP1.1a (1920 x 1080) |
| I/O接口 | 4
x 外部 USB 3.2 Gen1x1: Type-A (5Gb/s) 2 x 內部 USB 2.0: via one 2x4 pin connector, P=2.54 |
| 存儲 | 8
x SATA: 6Gb/s connectors 4 x M.2(NGFF): M Key (2242/2280, PCIe x4 for SSD) NVMe support slot |
| 擴展 | PCIe
x16 - 1 x PCIe Gen5 x16 slot 2 x PCIe Gen4 x16 slot PCIe x8: 3 x PCIe Gen4 x8 slot |
| 電源供電 | ATX/AT
power supply Support AT/ATX mode |
| 電源功耗 | 5VSB@0.7A,
5V@1.68A, 3.3V@0.87A, 12V@9.4A (AMD SP6 Siena 8-64 cores with 192GB (six of 32GB) 4800MHz DDR5 memory) |
| 操作溫度 | 0°C ~ 60°C |
| 存儲溫度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| 尺寸 (LxWxH) (mm) | 244mm x 305mm (ATX) |
| 凈重 | 900g |
| Safety & EMC | CE/FCC compliant |
| 散熱方案/系統風扇 | 1
x CPU fan connector (1x4 pin) 2 x System fan connector (1x4 pin) |
| TPM | 1 x TPM header |
| 尺寸類型 | ATX Motherboard |
| IMB-RZ7000-R10 | micro-ATX motherboard supports AMD 7000 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
| IMB-AM5-R10 | micro-ATX motherboard supports AMD 7000&8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
