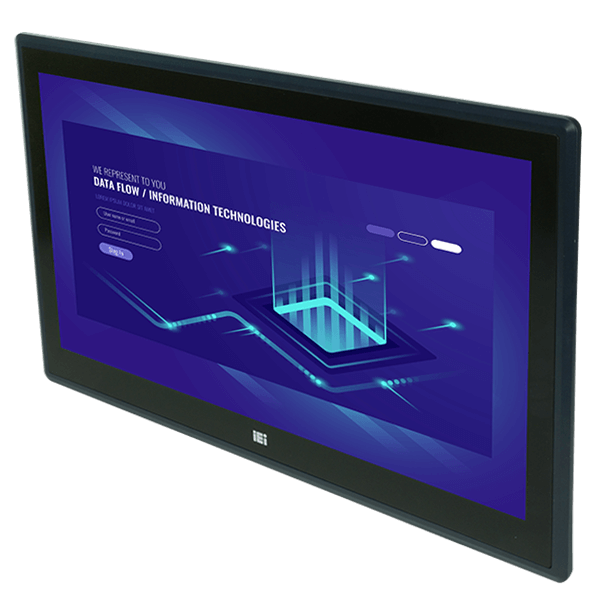

> 產品 > 重工業平板電腦 > PPC-FW24C-Q370| ● 23.8” 平板電腦 配備 第八代 LGA 1151 Intel® Core™ i7/i5/i3 和 Pentium® 處理器 |
|
● 四個可熱插拔且可訪問的硬盤驅動器托架，支持 RAID 0/1/5/10
|
|
● 兩個 PCIe 3.0 by 4 和兩個 PCIe 3.0 by
8 插槽
|
|
● 支持雙 M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD
|
|
● 支持 QTS-網關
|
產品規格
|
Form factor
|
LGA 1151 中的第八代 Intel CoreTM i7/i5/i3 處理器 |
| Intel® 300 系列芯片組 Q370 | |
|
LCD Size
|
23.8” |
|
Brightness(cd/m2)
|
250 |
|
Max Resolution
|
1920x1080 |
|
Contrast Ratio
|
3000:01:00 |
|
Backlight MTBF(hrs)
|
30000 |
|
Cooling method / System Fan
|
系統風扇 |
|
CPU
|
第八代 LGA1151 Intel® Core™ i7/i5/i3 和 Pentium® CPU |
|
Chipset
|
Intel® 300 系列芯片組 Q370 |
|
Memory Max.
|
兩個 288-pin 2666/2400 MHz 雙通道無緩沖 DDR4 SDRAM DIMM 插槽 (系統**** 64 GB) |
|
Ethernet
|
Intel® I211AT 以太網控制器 |
|
Power Supply
|
AC 輸入 ATX 電源 |
| 1. 250 W 電源 | |
| - 輸入: 115VAC~230VAC, 50/60Hz | |
| - 輸出 (****值): 3.3V@12A, 5V@14A, 12V@25A, -12V@0.3A,+5Vsb@3A | |
| 2. 350 W 電源 (按訂單生產) | |
| - 輸入: 115VAC~264VAC, 50/60Hz | |
| - 輸出 (****值): 3.3V@14A, 5V@16A, 12V@29A, -12V@0.3A,+5Vsb@3A | |
| - 性能: 滿載 (100%) 87%, 典型負荷 (50%) 90%, 輕負荷 (20%) 87% | |
|
Operating Temperature
|
0°C ~ 50°C (帶 SSD 和 TDP 65W 處理器) |
| 0°C ~ 40°C (帶 HDD 或 附加卡 不帶風扇) | |
|
Safety & EMC
|
CE, FCC, CCC |
|
Humidity
|
5% ~95%, 無冷凝 |
|
Storage Temperature
|
-20°C ~ 60°C |
|
IP Level
|
符合 IP66 標準的前面板 |
|
Color
|
前框: 青藍色 (PSM 296C); 其它: 黑色 C |
|
Mounting
|
面板/機架安裝 |
|
Dimensions (LxWxH) (mm)
|
600x382x119 |
|
Net Weight
|
12 |
|
Cutout Dimensions
|
577.6x359.6 |
|
Storage
|
4 x 熱插拔 SATA 6G/s HDD/SSD 托架 (支持 RAID 0/1/5/10) |
| 2 x M.2 M-key (2280, PCIe 3.0 x4), 支持 NVMe SSD | |
|
Expansion Slots
|
2 x PCIe 3.0 by 8 (by 16 插槽) |
| 2 x PCIe 3.0 by 4 (支持的****卡尺寸: 68 mm x 167 mm) | |
|
Touch Screen
|
10點投射電容式觸摸窗口, 6H |
| (防紫外線，防眩光表面) | |
|
Touch Controller
|
EETI EXC3188 |
|
TPM
|
支架(2x10pin, P=2.54mm) |
|
I/O Interface
|
1 x 麥克風 |
| 1 x 線路輸出 | |
| 2 x RS-232 | |
| 6 x USB 3.0 | |
| 1 x HDMI | |
| 2 x LAN | |
| 1 x 重置按鈕 | |
| 1 x 電源開關 | |
| 1 x AT/ATX 開關 |
| PPC-FW24C-Q370-i3/PC/25-R10 | 23.8" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-FW24C-Q370-i5/PC/25-R10 | 23.8" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i5-8500T Processor (6-core, 6-thread, 2.1 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-FW24C-Q370-i7/PC/25-R10 | 23.8" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Core™ i7-8700T Processor (6-core,12-thread,2.4 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
| PPC-FW24C-Q370-P/PC/25-R10 | 23.8" 250cd/m² 1920 x 1080 AI modular Panel PC, Intel® Pentium® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, two PCIe x4 and two PCIe x8 slots, four HDD bays, 250W PSU, R10 |
