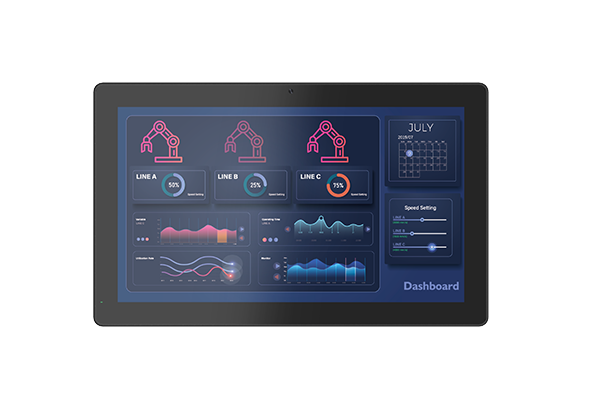

> 產品 > 輕薄平板電腦（ULT） > AFL3-W15C-ADLP
| » 第十二代英特爾Intel® Core™ Mobile i7/i5/i3處理器 |
|
» 全高清電容觸控屏
|
|
»
具備防眩光和防紫外的電容觸控屏
|
|
»
支持額外連接器接口的E-Window
|
|
» 支持WiFi 6E
和藍牙 5.2
|
| CPU | 第十二代 Intel® Core™ Mobile i7/i5/i3 Processors (Alder Lake-P) |
| 存儲 | 1 x 2.5” SATA 硬盤位 |
| 網絡 | 網口一:
通過Intel® I226 LM驅動 網口二: 通過Intel® I226V驅動 |
| Audio | AMP 3W + 3W (內部揚聲器) |
| 擴展 | 2
x M.2 2280 M-key (PCle Gen 4 x4) 1 x M.2 B KEY (PCIe x1 or SATA) for IPMI 1 x M.2 2230 E Key Slot support Vpro (PCIe 3.0 x1 + USB2.0 x1 + CNVI) |
| 音頻編解碼器 | ALC888S |
| 工作溫度 | 0°C ~ 50°C (50°C @90RH, ambient with air flow) |
| 安規&電磁 | CE, FCC (Class A) , UKCA |
| 相對濕度 | 10% ~ 90% (無冷凝) |
| 存儲溫度 | -20ºC ~ 60ºC |
| 機身顏色 | 黑色 |
| 安裝方式 | Panel, Wall, Stand and Arm VESA 75 /100mm |
| Power Supply | 12V直流 |
| 無線 | IEEE 802.11ax 2T2R module (Wi-Fi 6E) with BT v5.2 (M.2 2230 E-key) |
| LCD 尺寸 | 15.6” |
| 分辨率 | 1920 x 1080 (16:9) |
| 亮度 | 450 cd/m² |
| 對比度 | 33.33402778 |
| 可視角度 (H-V) | 170°/170° |
| 背光 MTBF | 50000小時 |
| 觸摸屏 | PCAP with USB interface (anti-UV/AR coating) |
| 觸控IC | EXC3160 |
| IP Level | 前面板符合IP64 |
| Construction Front Panel | PC + ABS 塑料 |
| I/O 接口 | 1
x RS-232 (by DB9) 1 x RS-232/422/485 (by DB9) 4 x USB 3.2 Gen1x1 (Type-A (5Gb/s)) 1 x HDMI™ (2.0 (高達 3840*2160 @60Hz)) 2 x LAN (英特爾® I226V 2.5GbE控制IC) 1 x Reset Button 1 x AT/ATX switch 1 x Clear CMOS Button |
| Memory Ext. | 兩個
260-pin 3200 MHz 雙通道DDR4 SO-DIMM (預裝8GB，可達64GB) |
| AFL3-W15C-ADLP-i7/8G-R11 | Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i7-1260P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
| AFL3-W15C-ADLP-i5/8G-R11 | Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i5-1240P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
| AFL3-W15C-ADLP-i3/8G-R11 | Wide 15.6" 450cd/m² 1920x1080 Panel PC with 12th Generation Intel® Core™ i3-1220P on-board processor, PCAP touch, 2M camera, microphone, 1x8GB DDR4 RAM, with AG, RoHS,R11 |
產品特征
