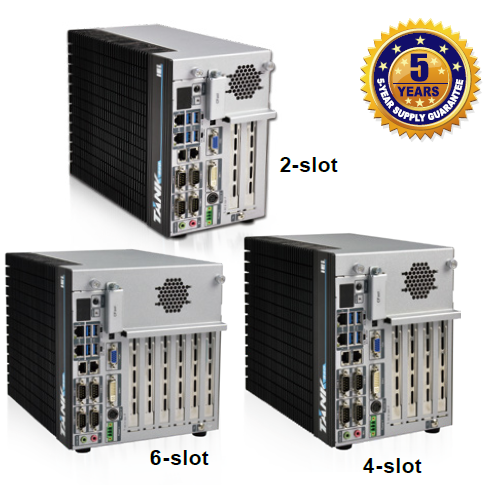

> 產品 > TANK系列強固型系統 > TANK-860-HM86| ● Intel® HM86 芯片組 + 第四代 Intel® Core™ CPU |
|
● 擴展槽具有極大靈活性
|
|
2-插槽 型: 2 x PCIe by 16, 1 x PCIe
Mini 插槽
|
|
4-插槽 型: 2 x PCIe by 16, 2 x PCI, 2 x
PCIe Mini 插槽
|
|
6-插槽 型: 1 x PCIe by 16, 2 x PCIe by 4, 3
x PCI, 2 x PCIe Mini 插槽
|
|
● IPMI 功能適用于用于遠程控制管理
|
|
● 三個獨立的視頻輸出支持高分辨率
|
|
● 2 x 2.5" SATA HDD bay 設計滿足高存儲需求
|
產品規格
|
SBC Form Factor
|
CPU: |
| Intel® Core™ i5-4400E 2.7 GHz | |
| Intel® Celeron® 2000E 2.2 GHz | |
| 芯片組:Intel® HM86 | |
| 系統內存 | |
| 2 x 204-pin DDR3 SO-DIMM 插槽. | |
| 預裝一個 4 GB SO-DIMM(系統****支持: 16 GB) | |
|
Cooling method / System Fan
|
無風扇 |
|
Drive Bays
|
2 x 2.5"" SATA 6Gb/s HDD/SSD bay |
|
I/O Ports
|
4 x USB 3.0 |
| 2 x USB 2.0 | |
| 以太網: | |
| 2 x RJ-45 | |
| 1 x PCIe GbE 采用 Intel® I210 | |
| 1 x PCIe GbE 采用 Intel® I217LM | |
| COM 端口: | |
| 4 x RS-232 (DB-9, 兩個帶隔離) | |
| 2 x RS-422/485 (RJ-45) | |
| 數字 I/O:8-bit 數字 I/O, 4-bit 輸入/4-bit 輸出 | |
| 顯示: | |
| 1 x VGA, 1 x DVI-I, 1 x 顯示端口 | |
| 分辨率 | |
| VGA: 高達 1920 x 1200@60Hz | |
| DVI-I: 高達 2500 x 1600@60Hz | |
| 顯示端口: Up to 2500 x 1600@60Hz | |
| 音頻: | |
| 1 x Line-out, 1 x Mic-in | |
| 無線 1 x 802.11b/g/n (可選) | |
|
Operating Temperature
|
-20°C ~ 60°C 含氣流 (SSD) |
|
Humidity
|
5% ~ 95%, 無冷凝 |
|
Dimensions
|
2 插槽: 121.5 x 255.2 x 205 |
| 4 插槽: 154.8 x 255.2 x 205 | |
| 6 插槽: 195.4 x 255.2 x 205 | |
|
Weight
|
- |
|
Color
|
黑 C + 銀 |
|
Expansion Slots
|
PCI/PCIe |
| 2 A: 兩個 PCIe x8 (物理 PCIe x16 插槽) | |
| 4 A: 兩個 PCIe x8 (物理 PCIe x16 插槽) +2 x PCI | |
| 6 A: 一個 PCIe x8 (物理 PCIe x16 插槽) +兩個 PCIe x4 + 三個 PCI | |
| PCIe Mini | |
| 2A: 1 x 全尺寸 (co-lay mSATA) | |
| 4A: 1 x 全尺寸 (co-lay mSATA) +1 x 全尺寸 (在底板上) | |
| 6A: 1 x 全尺寸 (co-lay mSATA) +1 x 全尺寸 (在底板上) |
| TANK-860-HM86i-C/4G/4A-R10 | Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 / 2 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
| TANK-860-HM86i-i5/4G/2A-R10 | Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
| TANK-860-HM86i-C/4G/6A-R10 | Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 1 x PCIe by 8 / 2 x PCIe by 4 / 3 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
| TANK-860-HM86i-i5/4G/6A-R10 | Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 1 x PCIe by 8 / 2 x PCIe by 4 / 3 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
| TANK-860-HM86i-C/4G/2A-R10 | Ruggedized Fanless embedded system , Intel Celeron dual-core 2000E 2.2GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
| TANK-860-HM86i-i5/4G/4A-R10 | Ruggedized Fanless embedded system , Intel Core i5 dual-core i5-4400E 2.7GHz, TDP 37W, 4GB DDR3 pre-installed memory , 2 x PCIe by 8 / 2 x PCI expansion, VGA/DVI-I/Displayport, iRIS-2400 optional, 9~36V DC, RoHS, R10 |
