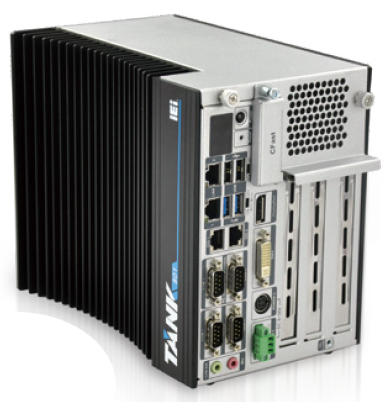

> 產品 > TANK系列強固型系統 > TANK-801-BT| ● Intel® Celeron® J1900 2 GHz, 10W |
|
● 16-bit 數字 I/O, 8-bit 輸入/8-bit 輸出
|
|
● 1 x DVI-I ,1 x 顯示端口
|
|
● 各種擴展類型:
|
|
3A: 一個 PCIe x1 + 兩個 x PCI
|
|
3B: 兩個 PCIe x1 + 一個 x PCI
|
|
3C: 3 x PCI
|
|
● 雙直流電源輸入
|
產品規格
|
SBC Form Factor
|
CPU: |
| Intel® Celeron® J1900 2 GHz | |
| 芯片組:SoC | |
| 系統內存: | |
| 一個 204-pin DDR3L 1.35V SO-DIMM | |
| 預裝 2 GB (系統****容量: 8G) | |
|
Cooling method / System Fan
|
無風扇 |
|
Drive Bays
|
1 x 2.5' SATA 6Gb/s HDD/SSD Bay |
|
I/O Ports
|
2 x USB 3.0 |
| 2 x USB 3.0 | |
| 以太網: | |
| 2 x RJ-45 | |
| 1 x PCIe GbE by Intel® I210 | |
| 1 x PCIe GbE by Intel® I211 | |
| COM 端口: | |
| 2 x RS-232 (DB-9) | |
| 2 x RS-232/422/485 (DB-9, 帶隔離) | |
| 16-bit 數字 I/O, 8-bit 輸入/8-bit 輸出 | |
| 1 x 顯示端口, 1 x DVI-I | |
| 1 x Line-out, 1 x Mic-in | |
|
Operating Temperature
|
-20°C ~ 60°C 含氣流 (SSD) |
|
Humidity
|
5% ~ 95%, 無冷凝 |
|
Dimensions
|
136 x 219 x 188 |
|
Weight
|
2.8 kg/4.3 kg |
|
Color
|
黑 C + 銀 |
|
Expansion Slots
|
1 x 全尺寸 PCIe Mini |
| PCI/PCIe: | |
| 3A: 一個 PCIe x1 + 2 x PCI | |
| 3B: 兩個 PCIe x1 + 1 x PCI | |
| 3C: 3 x PCI |
| TANK-801-BTi-J1/2G/3A-R11 | Fanless embedded system with two PCI and one PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs |
| TANK-801-BTi-J1/2G/3C-R11 | Fanless embedded system with three PCI expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC; RoHs |
| TANK-801-BTi-J1/2G/3B-R11 | Fanless embedded system with one PCI and two PCIe x 1 expansion , Intel Bay-Trail J1900 2GHz, TDP 10W, 2GB DDR3L pre-installed memory , 1 x DVI-I, 1 x DisplayPort , iRIS-2400 optional, 9V~36V DC,RoHs |
