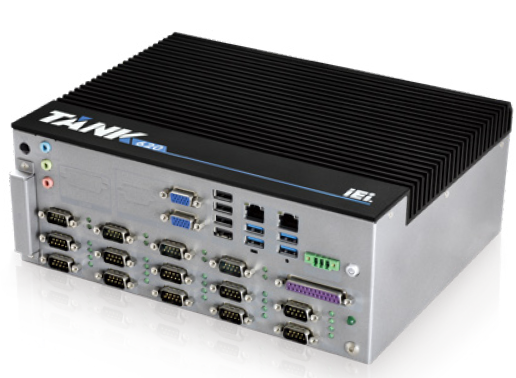

> 產品 > TANK系列強固型系統 > TANK-620-ULT3| ● Intel® Celeron® 3855U (1.6GHz, TDP=15W) |
|
● 多個 COM 端口 (最多 14個) ，帶 TX/RX 信號 LED
指示燈，用于數據傳輸指示
|
|
● 多個 USB 和 LAN
|
|
● 24-bit DIO
|
|
● M.2 M-key 和雙全尺寸 PCIe Mini 插槽，用于擴展
|
|
● 易于存取的存儲器
|
產品規格
|
SBC Form Factor
|
●CPU: |
| Intel® Celeron® 3855U (1.6GHz, TDP=15W) | |
| ●芯片組: | |
| SoC | |
| ●系統內存: | |
| 1 x 260-pin DDR4 SO-DIMM | |
| 1 x 板載 DDR4 4GB 預裝 (系統****: 32GB) | |
| ●電源: | |
| 輸入: 3-pin 接線端子: 9 ~ 36 V DC | |
| 功耗: 12V@2A | |
| ●可靠性: | |
| 操作沖擊: 半正弦波沖擊 5G, 11ms,每軸 100 次沖擊 | |
| 工作振動: MIL-STD-810G 514.6C-1 (SSD) | |
| Safety/EMC: CE/FCC | |
|
Cooling method / System Fan
|
無風扇 |
|
Drive Bays
|
2 x 2.5＂ SATA 6Gb/s HDD/SSD Bay |
|
Buttons
|
1 x 電源按鈕 |
| 1 x 重置按鈕 | |
| 1 x AT/ATX 開關 | |
|
Indicators
|
HDD, |
| 電源, | |
| COM 端口 | |
|
I/O Ports
|
●4 x USB 3.0 |
| ●4 x USB 2.0 | |
| ●以太網:2 x RJ-45 | |
| PCIe GbE by Intel® I211 控制器 | |
| ●COM 端口: | |
| 6 x RS-232 (DB-9) | |
| 8 x RS-232/422/485 端口，帶自動流量控制 (DB-9) | |
| ●1 x 24-bit 數字 I/O (12-bit 輸入/12-bit 輸出) | |
| ●音頻: | |
| 1 x 麥克風輸入, 1 x 揚聲器輸出, 1 x 線路輸出 | |
| ●顯示屏:2 x VGA | |
|
Operating Temperature
|
-30°C ~ 70°C 含氣流 (SSD) |
|
Humidity
|
10% ~ 95%, 無冷凝 |
|
Construction
|
擠壓鋁合金 |
|
Dimensions
|
260 x 200 x100 (WxDxH) (mm) |
|
Weight
|
4.4 kg/6.5 kg |
|
Color
|
黑色 C + 銀色 |
|
Expansion Slots
|
M.2: |
| 1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2) | |
| PCIe Mini: | |
| 2 x 全尺寸 PCIe 迷你插槽 (PCIe by1, USB2.0) |
| TANK-620-ULT3-CE/4G-R10 | Fanless wide temperature embedded system with Intel® Celeron® 3855U 1.6GHz (dual-core, TDP 15W), on-board 4GB DDR4 memory, 9 V~36V DC, with USB, dual VGA, dual Intel® PCIe GbE, COM, DIO, RoHS |
