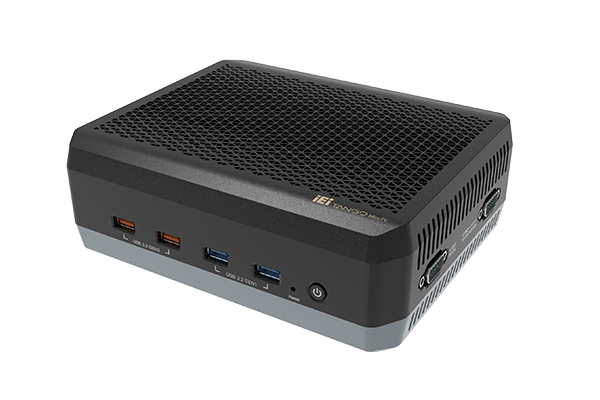

| » 緊湊型工業迷你電腦 |
|
» 智能風扇系統
|
|
» 12代 Intel®
Core™ i 系列處理器
|
|
» 三個 2.5GbE 網口
|
|
» 內置 Wi-Fi 6E
& 藍牙 5.2 模組(內部天線）
|
| SBC Form Factor | ● CPU: 12th
Intel ® Core™ i Processors ● 芯片組: H610 ● 系統內存: 2 x SODIMM 3200MHz DDR4, 預裝8G(內存上限64G) ● 電源: 直流插孔: 12V 直流 ● 功耗: 12V@2.95A (Intel ® Core™ i7-12700TE 帶8GB內存) |
| I/O Ports | ●
USB: 2 x USB3.2 Gen2 2 x USB3.2 Gen1 ● 網絡: 3 x RJ-45 2.5 GbE by I226V controller ● 顯示: 2 x HDMI™ 2.0B Support CEC (up to 4k@ 60Hz) 1 x DP 1.4 (up to 4k@ 60Hz) ● 串口: 1x RS-232 (DB9) 1x RS-232/422/485 (DB9) ● TPM: 支持Intel PTT ● 無線/藍牙: INTEL AX210 WiFi 6E &藍牙5.2模塊帶 2T2R天線 ● 看門狗定時器: 可編程1 ~ 255 秒/分鐘 |
| Expansion Slots | ●
M.2: 1 x 2230 E-key (PCIex1/USB2.0) (預裝無線模塊) 1 x 2280 M-key (PCIe Gen4 x4) 1 x 2280 M-key (PCIe Gen3 x4) |
| Cooling method / System Fan | 智能風扇 |
| Drive Bays | 1
x 2.5” SATA 6Gb/s HDD/SSD bay (****支持到9毫米厚度硬盤) |
| Buttons | 1
x 電源開關(帶燈) 1 x 復位開關 |
| Indicators | 1 x 電源燈 |
| Construction | ABS 塑膠+ 鋁合金 |
| Color | 黑&灰（Pantone 430C） |
| Dimensions | 192.09 x 158 x 64 (mm) |
| Weight | 1.29 / 2.34kg |
| 工作溫度 | 0°C ~ 40°C 帶0.7M/S 風流 (SSD) |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | 10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| 安規&電磁 | 符合CE/RED/FCC/UKCA 認證 |
| OS Support | Microsoft® Windows® 10/11, Linux |
| TANGO-7010-i9AWC-R11 | Fan System with Intel® Core™ i9-12900TE 1.1 GHz (up to 4.8 GHz, 16-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-i7AWC-R10 | Fan System with Intel® Core™ i7-12700TE 1.4 GHz (up to 4.6 GHz, 12-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-i5AWC-R10 | Fan System with Intel® Core™ i5-12500TE 1.9 GHz (up to 4.3 GHz, 6-core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
| TANGO-7010-i3AWC-R10 | Fan System with Intel® Core™ i3-12100TE 2.1 GHz (up to 4 GHz, quad core, TDP 35W), 1 x 8GB DDR4 pre-installed, 3 x 2.5GbE LAN, 2 x HDMI, 1 x DP, 4 x USB, 12V DC, Wifi-6E, RoHS |
產品特征
