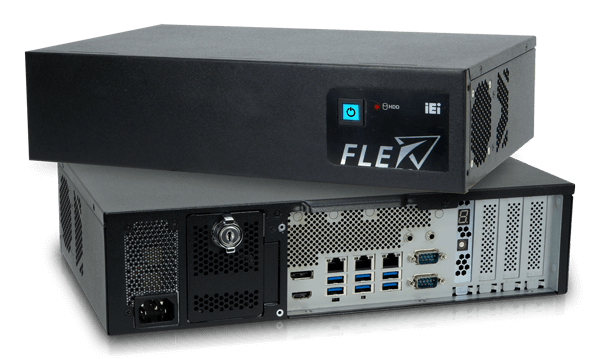

> 產品 > AI運算電腦 > FLEX-BX210-Q470
| » 支持CPUs: |
|
Intel® Core™
i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP)
|
|
Intel® Core™
i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP)
|
|
Intel® Core™
i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP)
|
|
» 四個支持 RAID
0/1/5/10 的熱插拔 HDD/SSD 托架
|
|
» 配備 PCIe 3.0
x4 插槽和 PCIe 3.0 x8 插槽
|
|
» M.2 2280
PCIe Gen 3 x4 支持NVMe
|
|
» 支持IEI
Mustang系列加速卡
|
| SBC Form Factor | CPU: 10/11 th Gen Intel® Core™ CPU 35/65W Intel® Core™ i3-10320 3.8 GHz (up to 4.6 GHz, quad-core, 65W TDP) Intel® Core™ i5-10500TE 2.3 GHz (up to 3.7 GHz, 6-core, 35W TDP) Intel® Core™ i7-10700TE 2.0 GHz (up to 4.4 GHz, 8-core, 35W TDP) 芯片組: Q470/Q470E 系統內存: 2 x 288-pin 2933/2666 MHz dual-channel DDR4 unbuffered DIMM (支持多達到64GB) 電源: ATX 電源,交流輸入 350W電源 |
| I/O Ports | USB: 6 x USB 3.2 Gen 1 網絡: 3 x 2.5GbE LAN 串口: 2 x RS-232 顯示: 1 x HDMI™ 1 x DP 聲卡: 1 x Line out 1 x Mic in TPM: 支持 Intel PTT 看門狗定時器： 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | M.2: 1 x M.2 B-Key 3042/52插槽 (帶SIM卡槽,支持 5G/LTE; 支持PCIe 3.0 x1 & USB 3.2 Gen 1) 1 x M.2 M-Key 2280插槽 (支持PCle 3.0 x4) 1 x M.2 A-Key 2230 (支持PCIe 3.0 x1 & USB 2.0) 擴展插槽: 2 x PCle 3.0 x8 2 x PCle 3.0 x4 |
| Cooling method / System Fan | 3 x 系統風扇, 1 x CPU風扇 |
| Drive Bays | 4個熱插拔 2.5＂ HDD/SSD SATA 6Gb/s 托架 (支持RAID 0/1/5/10), 帶LED指示燈 |
| Buttons | 1
x 電源開關 1 x 復位開關 1 x AT/ATX開關 |
| Indicators | 1
x 電源燈 (藍色) 1 x 硬盤燈 |
| Construction | 金屬 |
| Color | 黑色 |
| Dimensions | 357 x 230 x 88 |
| Weight | 4.1 kg/7.2 kg |
| 工作溫度 | -10°C ~ 50°C |
| 相對濕度 | 5% ~ 95%, 無冷凝 |
| Operating Vibration | 5~17Hz, 0.1 double amplitude displacement 17 ~ 640Hz 1.5G acceleration peak to peak |
| Operating Shock | 10G acceleration part to part (11ms) |
| 安規&電磁 | 符合CE/FCC認證 |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| FLEX-BX210-Q470-i9D-R20 | 2U Modular box PC, Intel® 10th Generation Core™ i9-10900TE 1.8GHz (up to 4.5GHz, 10-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20 |
| FLEX-BX210-Q470-i7D-R20 | 2U Modular box PC, Intel® 10th Generation Core™ i7-10700TE 2.0GHz (up to 4.4GHz, 8-core, TDP 35W), 16GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20 |
| FLEX-BX210-Q470-i5C-R20 | 2U Modular box PC, Intel® 10th Generation Core™ i5-10500TE 2.3GHz (up to 3.7GHz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, TPM 2.0, 350W PSU, R20 |
| FLEX-BX210-Q470-i3C-R20 | 2U Modular box PC, Intel® 10th Generation Core™ i3-10320 3.8GHz (up to 4.6GHz, 4-core, TDP 65W), 8GB DDR4 pre-installed memory,TPM 2.0, 350W PSU,R20 |
| FLEX-BX210-Q470/35-R20 | Barebone, 2U AI Modular BOX PC, Intel® COMET Lake, Q470 chipset, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, w/o CPU, 350W PSU, R20 |
產品特征
