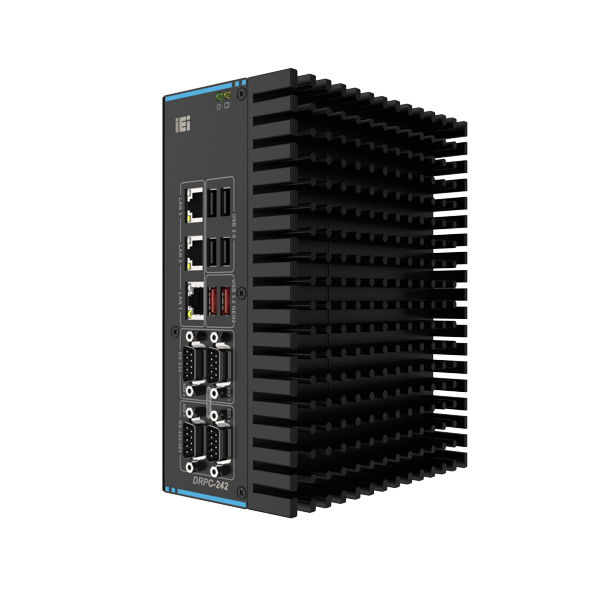

> 產品 > 導軌安裝嵌入式系統 > DRPC-242-ADL-P
| » Supported CPUs: |
|
Intel® Core™
i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
|
|
Intel® Core™
i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
|
|
Intel® Core™
i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
|
|
Intel® Core™
i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
|
|
Intel® Core™
i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
|
|
Intel® Core™
i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
|
|
Intel®
Celeron® 7305 (5-core, 15W TDP)
|
|
» 2 x USB 3.2
Gen2 & 4 x USB 2.0
|
|
» 2 x RS-232
& 2 x RS-422/485 (待2.5KV隔離)
|
|
» 符合CE/FCC
|
| SBC Form Factor | ●Supported
CPU: Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP) Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP) Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP) Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP) Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP) Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP) Intel® Celeron® 7305 (5-core, 15W TDP) ●芯片組: SoC ●系統內存: 2 x SO-DIMM slot DDR4 3200 MHz (預裝8GB) (****上限64GB) ●電源: 3針鳳凰端子: 12-28V直流 功耗: 12V@4.46A (Intel® Core™ i7-1260P 帶8GB DDR4內存) |
| I/O Ports | ●USB: 2 x USB 3.2 Gen2 4 x USB 2.0 ●網絡: 1 x 2.5 GbE by Intel® I226LM controller support iAMT 2 x 2.5 GbE by Intel® I226-V controller ●顯示: 1 x lockable HDMI™ 1.4b (up to 4096 x 2160@30Hz) 1 x DP 1.4b (up to 4096 x 2160 @60Hz) ●COM Port: 2 x RS-232 (DB9 with 2.5KV isolation) 2 x RS-232 (選配) 2 x RS-422/485 with AFC (DB9 with 2.5KV isolation) ●GPIO: 1 x 12-bit(6-in, 6-out)(選配) ●TPM: 支持 Intel PTT ●看門狗定時器： 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | ●M.2: 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro 1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0) 1 x 板載SIM 卡槽 (hinge type) for M.2 B key 1 x 2280 M-key (PCIe Gen4 x4) ●Backplane: 1 x PCIe Gen3 x4 (選配) |
| Cooling method / System Fan | 無風扇 4-pin 外部風扇接口 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s SSD bay |
| Buttons | 1
x 電源開關 1 x 2-pin鳳凰端子遠程開關接口 1 x 復位開關 1 x AT/ATX 開關 |
| Indicators | 1
x 電源燈 1 x 硬盤燈 |
| Construction | 鋁合金 |
| Color | 黑色 |
| Dimensions | 81 x 150 x190 mm |
| Weight | 1.88 / 2.66KG |
| 工作溫度 | -20°C ~ 60°C 帶0.7M/S氣流 (SSD) |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | 10-500 Hz,1.04 Grms, random, 1 hr/axis |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| 安規&電磁 | CE, FCC, UKCA |
| OS Support | Microsoft® Windows® 10/11, Linux |
| DRPC-242-ADL-P-i7CS-R11 | Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-i5CS-R11 | Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-i3CS-R11 | Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri7ECS-R11 | Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri5ECS-R11 | Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-Ri3ECS-R11 | Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
| DRPC-242-ADL-P-CCS-R11 | Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS |
