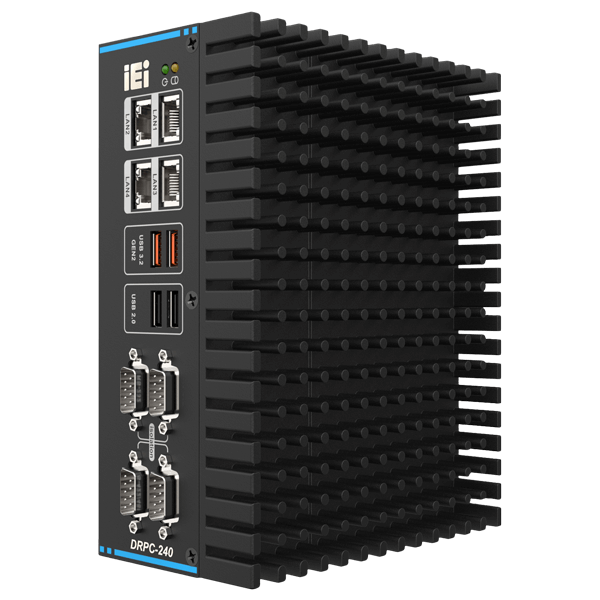

> 產品 > 導軌安裝嵌入式系統 > DRPC-240-TGL-U
| » 支持的CPU: |
|
Intel®
Celeron® 6305/6305E 1.8 GHz (dual-core, 15W TDP)
|
|
Intel® Core™
i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, 15W TDP)
|
|
Intel® Core™
i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, 15W TDP)
|
|
» 4 x 2.5GbE
ports, 支持PoE(可選)
|
|
» 2 x RS-232
& 2 x RS-422/485 (2.5kV隔離)
|
|
» 兼容CE/FCC
|
| SBC Form Factor | ● CPU: Intel® Celeron® 6305E 1.8 GHz (dual-core, TDP 15W) Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W) Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W) ● 芯片組: SoC ● 系統內存: 2 x SO-DIMM DDR4 3200 MHz (預裝8 GB ) (支持多達到64GB) ● 電源: 輸入: 接線端子: 12 ~ 28V直流 功率: 12V @ 6.98A (Intel ® Core™ i5-1145G7E帶8GB內存) |
| I/O Ports | ●
USB: 2 x USB 3.2 Gen 2 2 x USB 2.0 ● Ethernet: 4 x RJ-45 (* 支持可選的 PoE AF 模塊) 1 x 2.5 GbE by Intel® I226LM 3 x 2.5 GbE by Intel® I226V (colay I226LM) ● COM Port: 2 x RS-422/485 with AFC (DB-9, 帶2.5kV隔離) 2 x RS-232 (DB-9, 帶2.5kV隔離) ● Digital I/O: 12-bit Digital I/O (6-in/ 6-out) (optional) ● 顯示: 1 x HDMI™ (up to 3840 x 2160@30Hz) 1 x DP++ (up to 4096 x 2304@60Hz) ● TPM: 支持Intel PTT ● 看門狗: 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | ●
M.2: 1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) 1 x 3042/52/80 B-key (PCIe Gen3 x1/USB 3.0/USB 2.0) 1 x 板載SIM卡槽 (合頁類) 適用于M.2 B key ● 背板: 1 x PCIe x4 (選配) |
| Cooling method / System Fan | 無風扇 4 針外部系統風扇連接器 |
| Drive Bays | 1 x 2.5” SATA 6Gb/s HDD/SSD bay |
| Buttons | 1
x 電源開關 1 x 復位開關 1 x AT/ATX switch |
| Indicators | 1
x 電源燈 (綠色) 1 x 硬盤燈 (黃色) |
| Construction | 鋁合金 |
| Color | 黑色 |
| Dimensions | 81 x 150 x 190 |
| Weight | 2.15/ 2.5 kg |
| 工作溫度 | -20°C ~ 60°C 有氣流 (SSD) |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| 安規&電磁 | 兼容 CE/FCC |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| DRPC-240-TGL-U-i7CS-R11 | Fanless embedded system, Intel®Tiger Lake-U i7-1185G7E 1.8GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS |
| DRPC-240-TGL-U-i5CS-R11 | Fanless embedded system, Intel®Tiger Lake-U i5-1145G7E 1.5GHz (quad core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS |
| DRPC-240-TGL-U-W10E64-V-R10 | OS Image with Windows® 10 Enterprise Value 64-bit 2019 for DRPC-240-TGL-U Celeron/i3/i5 Series, with DVD-ROM, RoHS |
| DRPC-240-TGL-U-W10E64-H-R10 | OS Image with Windows® 10 Enterprise High End 64-bit 2019 for DRPC-240-TGL-U i7 Series, with DVD-ROM, RoHS |
| DRPC-240-TGL-U-CECS-R11 | Fanless embedded system, Intel®Tiger Lake-U Celeron® 6305E 1.8GHz (dual core, TDP 15W), 8GB DDR4 pre-installed memory, HDMI/DP++, 4 x 2.5GbE LAN, 4 x COM, DIO, 12~28V DC and RoHS |
