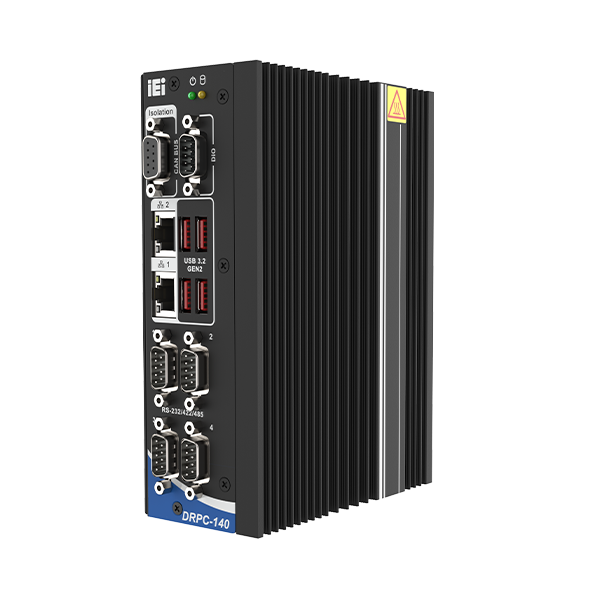

> 產品 > 導軌安裝嵌入式系統 > DRPC-140-EHL
| » 無風扇系統 |
|
» Intel®
Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
|
|
»
四個RS232/422/485串口
|
|
» 兩個帶隔離的CAN總線
|
|
» 符合CE/FCC
|
| SBC Form Factor | ● Supported
CPU: Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W) ● 芯片組: SoC ● 系統內存: 1 x SO-DIMM DDR4 3200 預裝 8GB (上限 32GB) ● 電源: 3-針鳳凰端子: 12-24V直流 功耗: 12V@3.36 (Intel® Celeron® J6412 帶8GB DDR4內存) |
| I/O Ports | ●
USB: 4 x USB 3.2 Gen2 ● 網絡: 2 x 2.5 GbE by Intel® I226-V controller ● 顯示: 2 x HDMI™ (up to 4K@30Hz) ● COM Port: 4 x RS-232/422/485 (DB-9) ● Digital I/O: 8-bit Digital I/O (4-in/ 4-out) ● CAN BUS: 2 x CAN-bus (DB9 帶2.5kV隔離) ● Wireless: 1 x 802.11a/b/g/n/ac (選配) ● TPM: 1 x TPM (2 x10 pin) Intel PTT ● 看門狗定時器： 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | ●
M.2: 1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0) 1 x M.2 M Key 2280 (PCIe Gen3 x2) |
| Cooling method / System Fan | 無風扇 |
| Drive Bays | eMMC 5.1 (選配) (起訂量要求，請與銷售聯系。) |
| Buttons | 1
x 電源開關 1 x 復位開關 1 x AT/ATX開關 |
| Indicators | 1
x 電源燈 1 x HDD燈 |
| Construction | 鋁合金 |
| Color | 黑色 |
| Dimensions | 58.75 x 130 x 174 (mm) |
| Weight | Net: 1.39kg / Gross: 1.68 kg |
| 工作溫度 | -20°C ~ 60°C 帶 0.7M/S 空氣流動 (M.2) |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | MIL-STD-810G 514.6C-1 (SSD) |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| 安規&電磁 | CE, FCC, UKCA |
| OS Support | Microsoft® Windows® 10/11, Linux |
| DRPC-140-EHL-JC-R11 | Fanless embedded system, Intel® Celeron® J6412 2.0GHz, (up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 4 x RS-232/422/485, 4 x USB 3.2, 2 x HDMI, 2 x 2.5GbE Lan, 8-bit DIO, 2 x CAN-Bus, 12~24V DC and RoHS |
