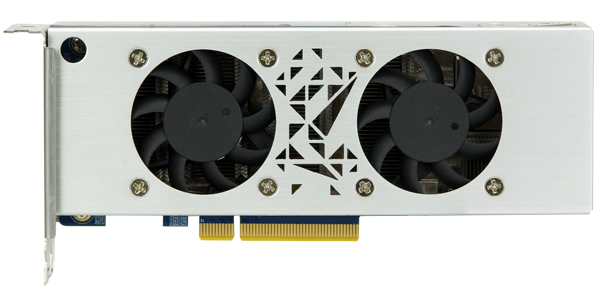

> 產品 > AI運算加速卡 > Mustang-F100| ● 半高, 半長, 雙插槽. |
|
● 節能, 低延遲.
|
|
● 支持 OpenVINO™ 工具包, AI 邊緣計算就緒設備.
|
|
● FPGAs 可以針對不同的深度學習任務進行優化.
|
|
● Intel® FPGAs 支持多個浮點和推理工作負載.
|
產品規格
|
Form factor
|
PCIe Gen3x8 |
|
Chipset
|
Intel® Arria® 10 GX1150 FPGA |
|
Memory Max.
|
8G 板載 DDR4 |
|
Supported OS
|
Ubuntu 16.04.3 LTS 64 位, CentOS 7.4 64 位 (2018年底支持 Windows® 10 64 位, 即將推出更多操作系統) |
|
Other On-board Devices and Interfaces
|
Dip 開關和 LED 指示燈 |
|
Input
|
保留 PCIe 6-pin 12V 外部電源 |
|
Power consumption
|
40W Typical |
|
Operating Temperature
|
5~60℃ |
|
Safety & EMC
|
CE FCC Part B, UL, CB |
|
Humidity
|
5~90℃ |
|
Dimensions
|
169.5x67.6x33.7mm |
| 7Z000-00FPGA00 | OTHERS PERIPHERAL DEVICE;FPGA Download Cable;IEI USB DOWNLOAD CABLE;Macnica;USB Download+USB CABLE+IDE CABLE+FPGA CABLE |
| Mustang-F100-A10-R10 | PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface |
